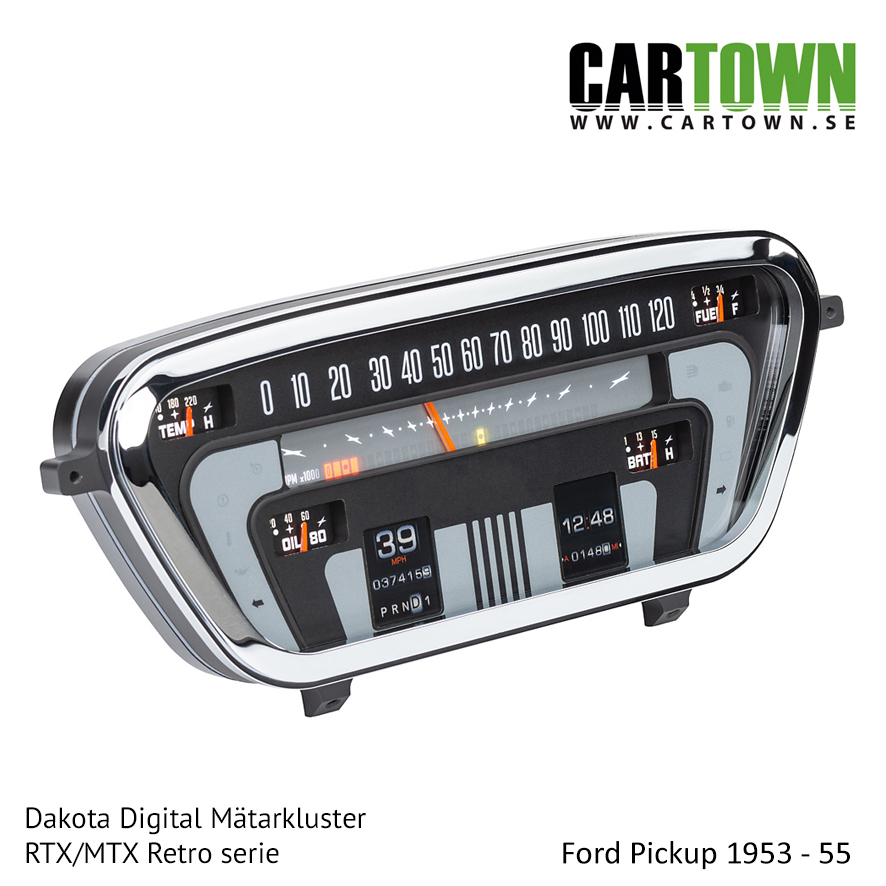

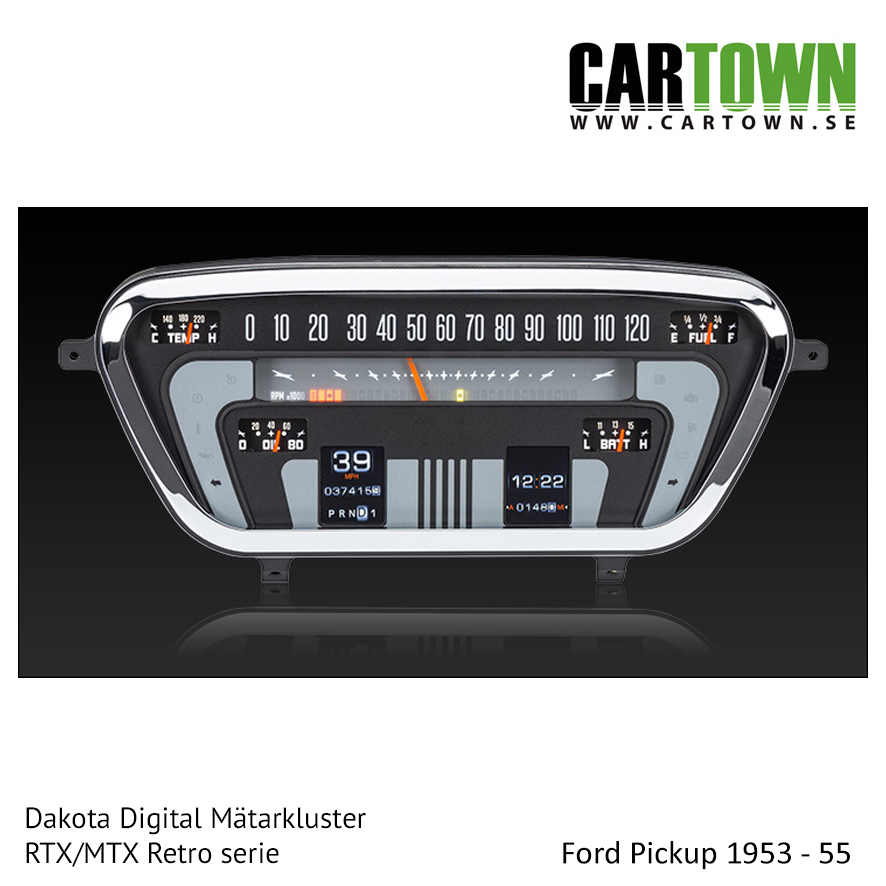

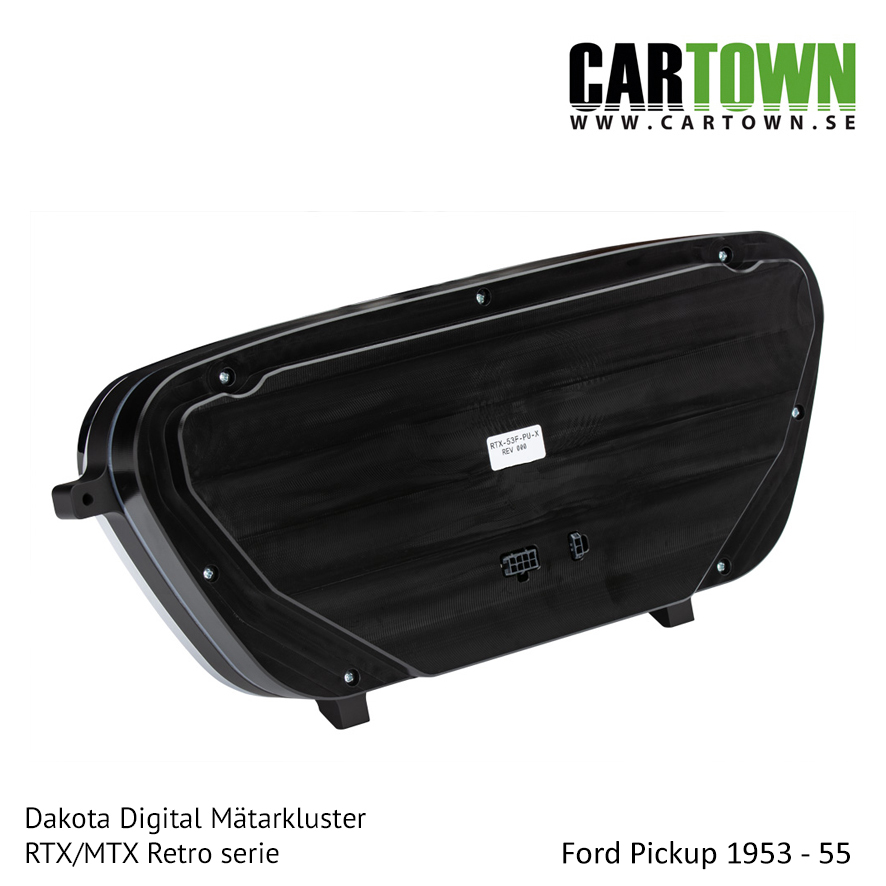

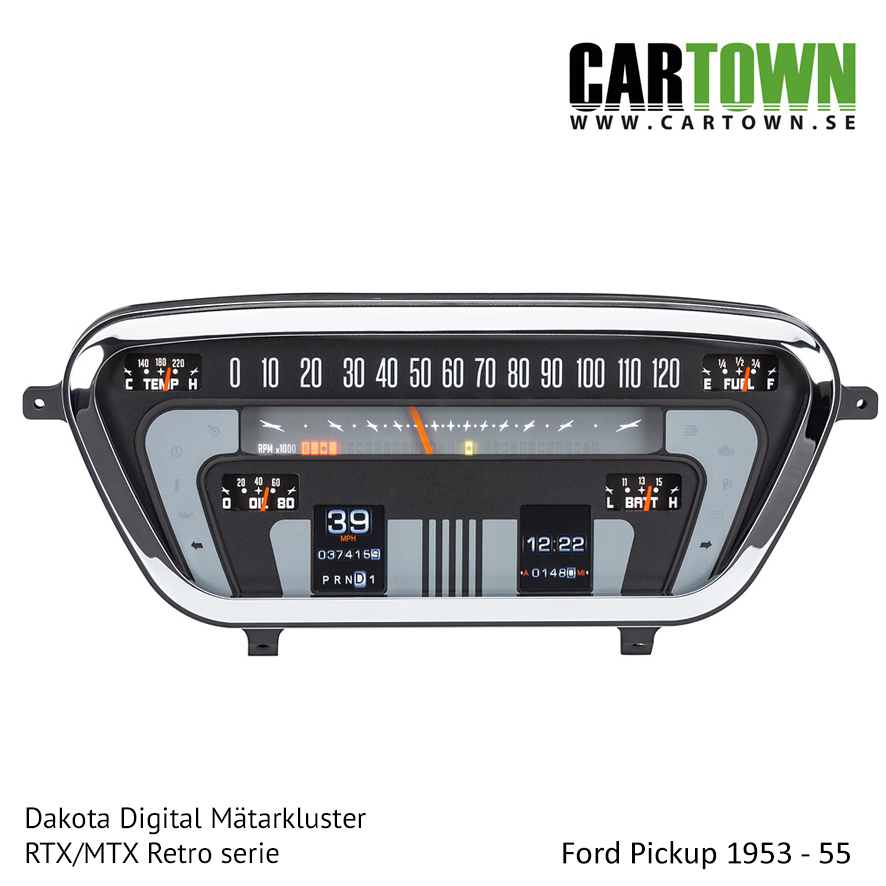

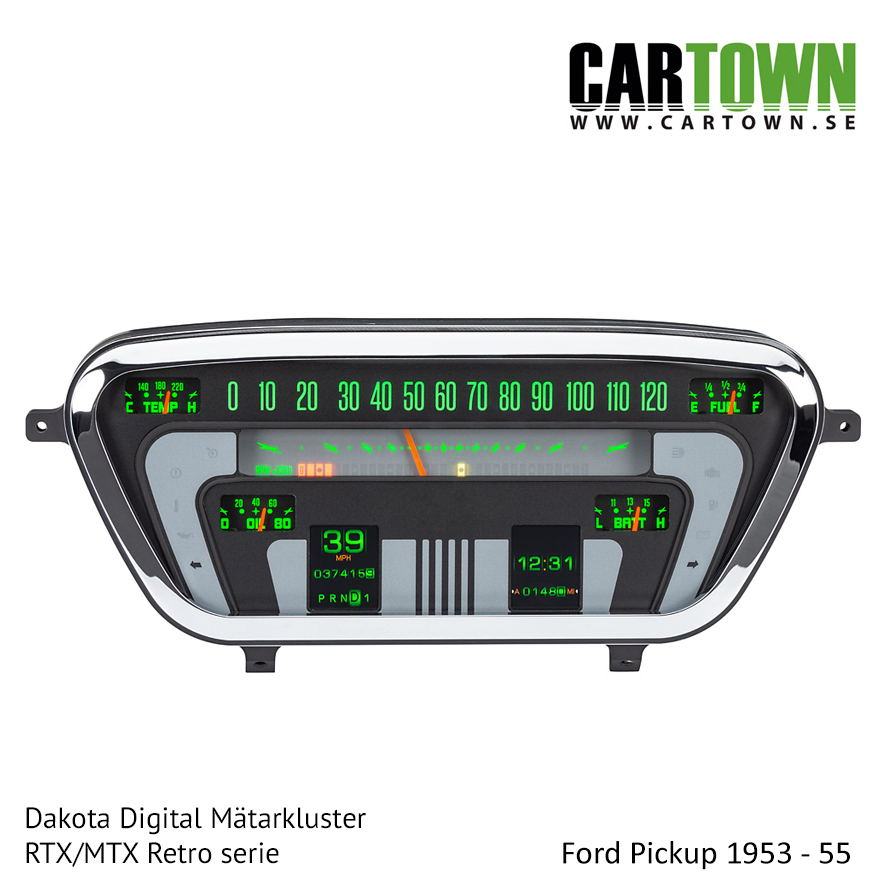

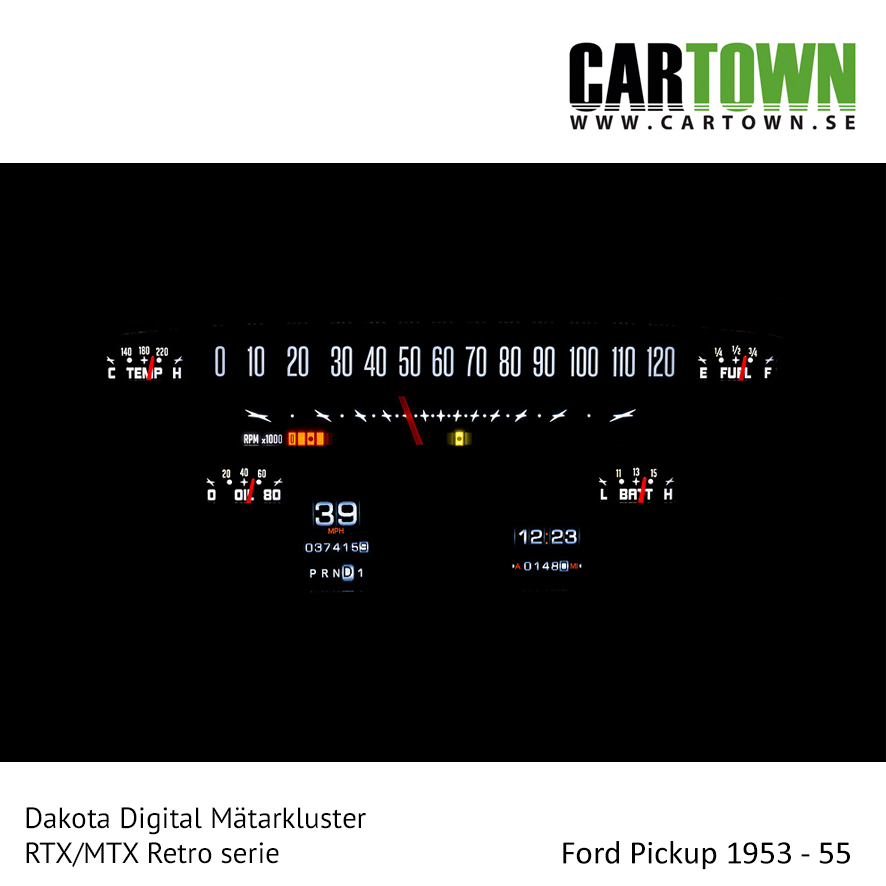

Mätarkluster Ford 1953-55 Pickup RTX/MTX

Mätarkluster Ford Pickup 1953-55 RTX/MTX Cromeringen ingår inte Dessa kluster ger en känsla av orginalutseende trots att den är digital RTX-53F-PU = Miles MTX-53F-PU = KM/h, Celsius och grader Det går också att köpa till växelsensor, bränslegivare, kompass/temp, Dimmerknapp. OBD II / CAN Interface Även den kromade kantringen/bezeln går att köpa till. RTX kan också konfigureras via mobilapp. Mätarhus och styrbox ingår i detta paket. Speedometer ·0 -120 MPH (optional metric version 0- 200 kmh) Oil Pressure ·0- 80 psi Water Temperature ·100- 260ºF (optional metric version 40- 120ºC) Fuel Level ·E, 1/4, 1/2, 3/4, F Voltmeter ·9- 17 VDC Digital Bar Graph Gauges Tachometer ·0- 8,000 RPM Digital Message Centers Standard Displays ·Odometer (One time user settable, Million Mile) ·Dual (A/B) Trip Meter (0- 9,999.9) ·Clock (12 hour) ·Estimated Range/ Miles to Empty Performance Meters ·0- 60 MPH Timer (0- 100 kmh) ·1/4 and 1/8 mile time ·1/4 and 1/8 mile end speed (trap speed) ·High speed recall ·High RPM recall Built-in Indicators Indicators ·Turn Signals (Left/ Right) ·High Beam ·Check Engine ·Parking Brake ·Cruise Control (On/ On & Engaged when vehicle is equipped) ·Gear Position (Optional GSS-3000 sensor required) ·4 x 4 (When vehicle is equipped) ·Wait to Start (When vehicle is equipped) ·Two Auxiliary input indicators with user-programmable labels ·Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer) **Not all OEM indicator lamp functions will be replaced. If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application. Lighting Technology Colors ·Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color. Brightness ·Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality. Themes ·With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself. Technology ·Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice. Included Sensors Water Temperature ·1/8" NPT, ground isolated sensor with a 10 ft harness. Oil Pressure ·1/8" NPT solid state sensor with a 10 ft harness. Cable Driven Speed Sensor/ Generator ·Replaces Ford and/ or GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. Bushings ·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads. Control Box Dimensions 5.5" x 3.5"x 1"
