Mätarkluster BIM EFI Bridge

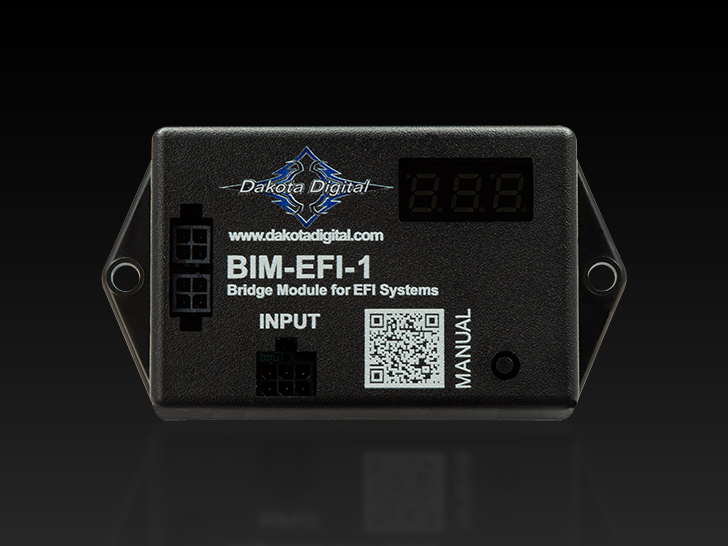

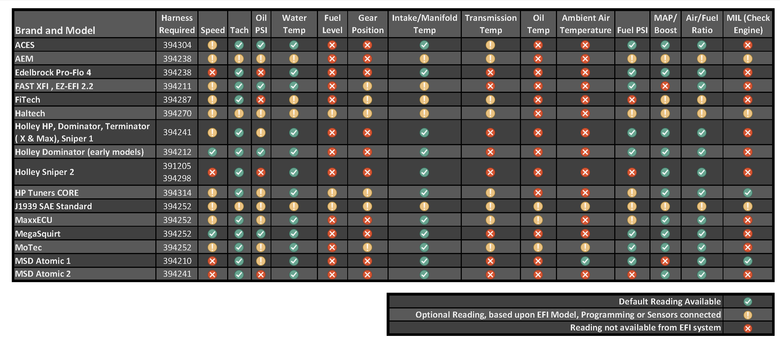

NYHET - Dakotas nya BIM EFI Bridge-modul fungerar med bla MAXXECU Se bilder vilka system och vad den kan plocka upp. Dakota Digital’s popular BIM interface modules for aftermarket fuel injection ECUs have been reengineered into the new BIM-EFI-1. The BIM-EFI-1 and corresponding harness (see below) will decode the information provided by your ECU and streamline the installation of our VFD3, VHX, HDX, RTX or GRFX series of gauges by eliminating the need to duplicate some senders and sensors. The BIM-EFI-1 will also provide additional information to our gauges depending upon the configuration of your aftermarket ECU. Now with Bluetooth technology, the BIM-EFI-1 setup and programming is even easier with the use of a smart phone or device. Bluetooth also provides the ability to have over the air software updates to ensure your BIM-EFI-1 is up to date and compatible with your fuel injection manufacturer's current software. *See below for the corresponding CAN Bus harness that will be REQUIRED in addition to the BIM-EFI-1 module. **For OEM ECU’s (J1850/CAN) with an OBD II engine diagnostic port, please refer to the BIM-01-2** Harness EFI Manufacturer 394241 Holley HP, Dominator, Terminator, Terminator X, Sniper 1, MSD Atomic 2 394212 Holley Dominator (early versions) – special order 391205 394298 Holley Sniper 2 394211 FAST XFI and EZ-EFI 2.0 394210 MSD Atomic 1 394238 AEM and Edelbrock Pro-Flo 4 394252 MegaSquirt, MaxxECU, MoTeC, and J1939 (unterminated leads) 394270 Haltech 394304 Aces 394287 FiTech 394314 HPTuners CORE
