Mätarkluster BIM Holley EFI

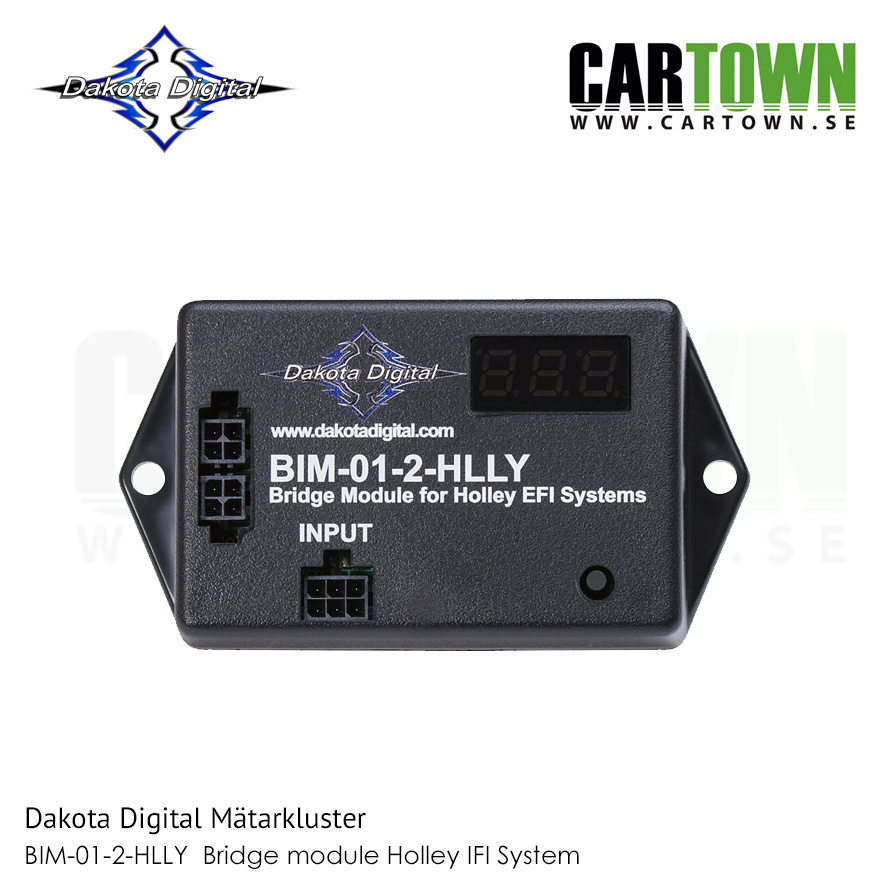

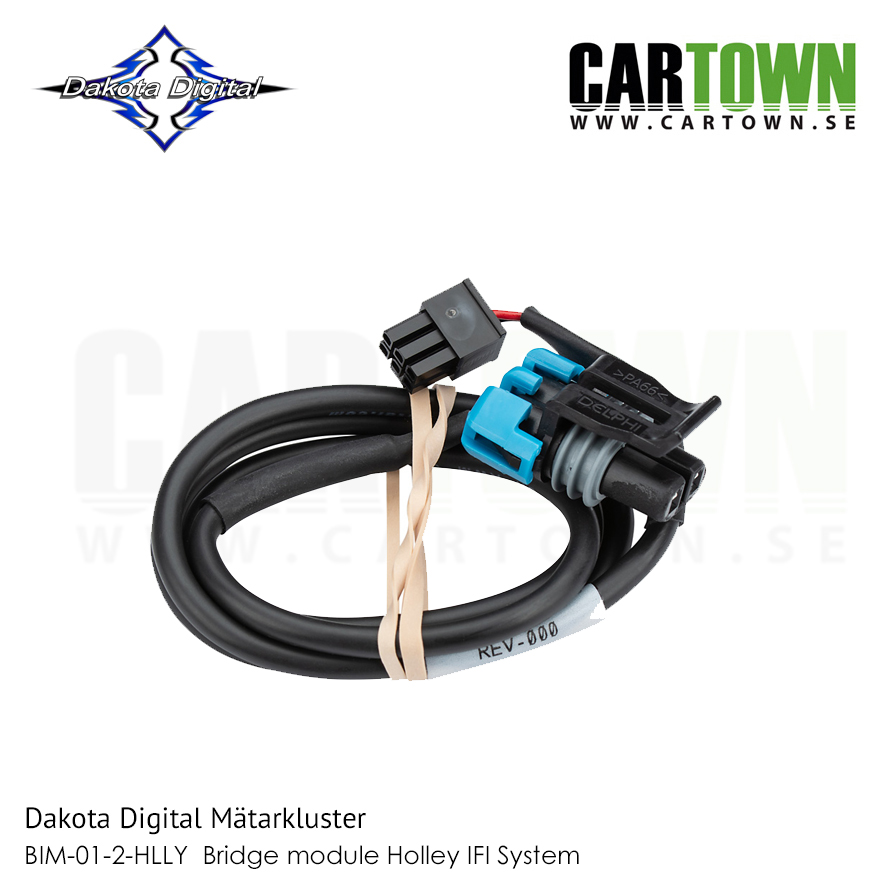

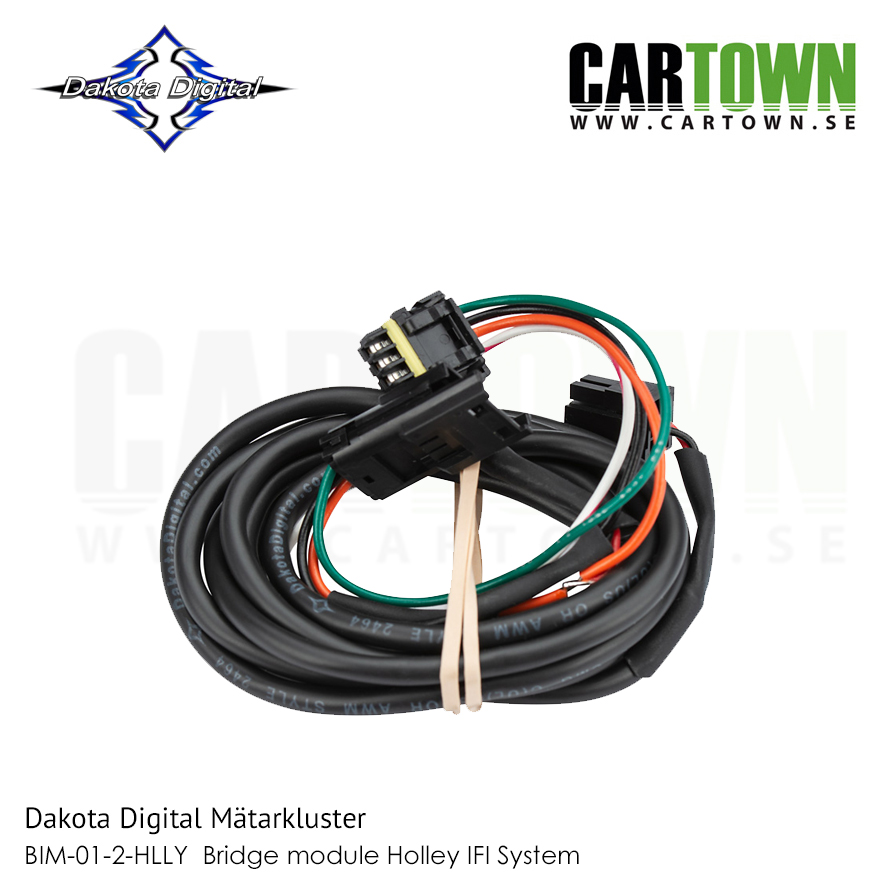

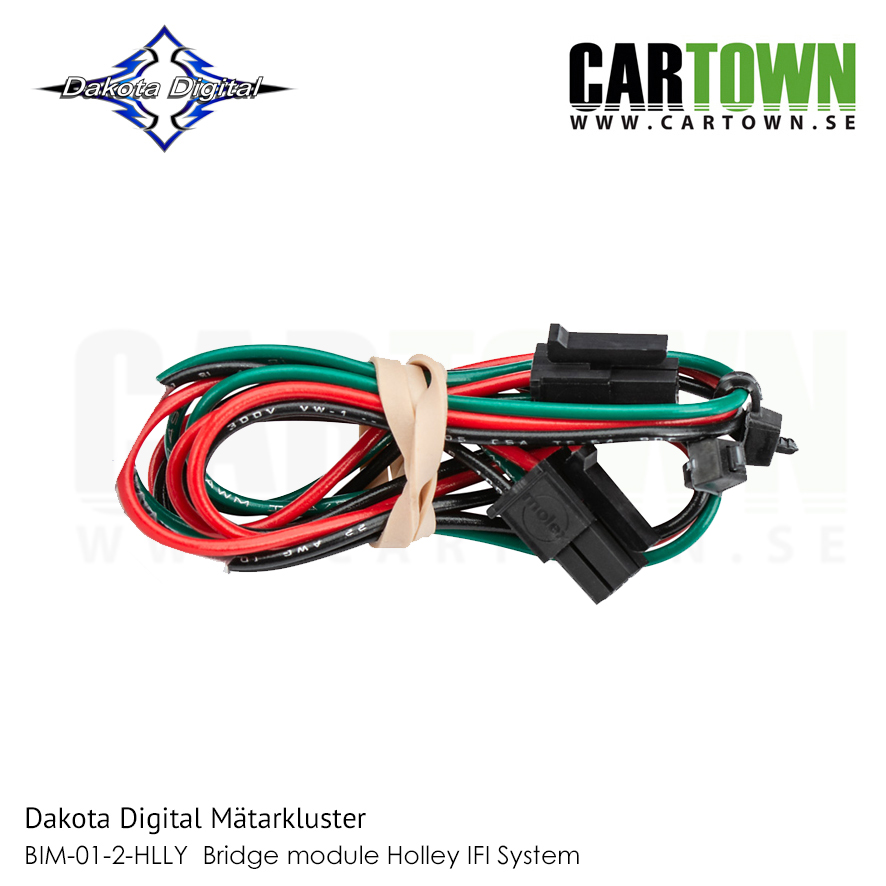

BIM-01-2-HLLY skickar motorinformation från Holley Terminator (inklusive X och X Max), HP, Sniper, och Dominator EFI kit. BIM-01-2-HLLY modul är direkt plugganslutning 2 eller 4 pin kabelhärvor ingår för enkel inkoppling mot Holleys EFI system. BIM-01-2-HLLY samlar och skickar följande information till Dakotas instrument *: Alltid tillgängliga: Tachometer Motortemp Insugstemp. Bränsletryck Air/ Fuel Ratio "Please note: Due to the various factory and modified ECM's, additional data add-on's from Holley may be available such as Vehicle Speed, Oil Pressure and Boost. Dakota Digital cannot guarantee the presence or accuracy of the Coolant Temp., Intake Temp., Fuel Pressure, or Air/ Fuel ratio displays since this is a function of the ECM and matching OEM functional sensors. *The BIM-01-2-HLLY is designed to decode the information provided by the Holley Terminator (X and X MAX with BIM-01-2-HLLY produced after 6/13/2019), Sniper (Sniper with BIM-01-2-HLLY produced after 2/1/2018) HP and Dominator EFI's and supply this information to the VFD3 rev. G, VHX, RTX and HDX control box instrument systems only". **Kompatibla Dakotakluster: VHX, HDX, RTX och VFD3 systemssom har svarta plastlådan. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness Tidigare Instrument som har den gamla plåtlådan är inte kompatibla med denna modul.
