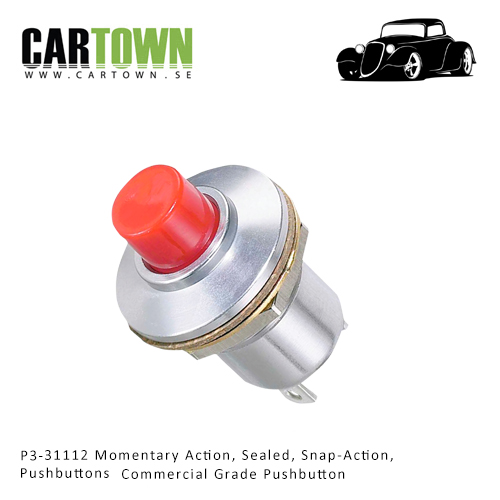

Tryckknapp Alu återfjädrande OFF-(ON) klick 16mm

Återfjädrande tryckknapp Off-(On) med snapp funktion Världens bästa tryckknapp för dig med riktigt höga krav på funktion Där du också vill känna att den är aktiverad tack vare snap-funktionen Kan även köpas med lödd 2-polig rak 0,75-1,5 kabel, 2-polig 0,75-1,5 spiralkabel. Denna knapp kommer med ofärgat aluminiumhölje och svart eller röd tryckknapp Används ofta inom Militär, Flyg, Båt, Bil, tex. Dragracing mm OTTO Momentary Action, Sealed, Snap-Action, Double Break SEALED COMMERCIAL GRADE PUSHBUTTONS Makes and breaks every time! The OTTO design featuresinherent rocking action that breaks welds and wipes contacts clean. The P3 is the commercial version of the P1 Pushbutton switch, offering vastly improved life under extreme conditions found in some industrial environments. The pushbutton is sealed by a silicone boot operating on our patented “rolling sleeve,” providing longer life and smoother operation over a wide temperature range. Epoxy protects the contacts and terminals from hostile environments and solder flux. High contact force (120g/4.2 oz) and short contact bounce are the result of our snap-action mechanism. These characteristics provide exceptional current carrying capabilities over the life of the switch. With the optional logic level (gold plate) configuration, The P3 is well suited to interface directly to computers and other solid state devices. Watertight sealing is available by simply adding “W” to your part number. Because the P3 is a double break switch, wide connection possibilities, longer life and greater capacity are offered. The P3 design provides a unique terminal connection to the moving element for added flexibility. Special versions can be provided with five terminals to control up to four circuits. Features: • Button sealed with patented “rolling sleeve” principle • Contact area sealed at button & terminals • Positive tactile feedback • Engraved buttons & bezels available • UL recognized • 1 million mechanical cycle life • Watertight to IP68S available in all versions • Watertight to IP69K available in non push-pull versions • RoHS compliant Standard Characteristics/Ratings: ELECTRICAL RATINGS: Load Sea Level @ 28VDC 50,000 feet @ 28VDC Cycles or 115VAC, 60/400Hz or 115VAC, 60/400Hz Resistive 10A N/A 100,000 Inductive 5A 5A 100,000 Lamp 3A N/A 100,000 Center Contact 3A max N/A 100,000 DWV 1000Vrms 400Vrms Logic Level 10mA @ 5VDC Electrical Life: 25,000 or 100,000 cycles (depending on configuration) High Force Push Pull 5,000 cycles Mechanical Life: 1 million cycles, circuit forms 1, 2 & 6 100,000 cycles, circuit forms 3, 4 & 5 High Force Push Pull 5,000 cycles Seal: IP64 or IP68S and IP69K IP64 or IP68S on push-pull versions Shock: MIL-STD-202, method 207 Operating Temp Range: -55°C to +85°C, High Force Push Pull -40°C to +85°C Operating Force: 2.5 lbs. or 4.0 lbs. Push-Pull: .5 to 2.0 lbs. Push-Pull High Force: 3.0 lbs. min. Reset Force: 0.75 lb. min or 1.0 lb. Total Travel: 0.085 +/- 0.015 inches Overtravel: 0.012 inches min Movement Differential: 0.015 inches min MATERIALS: Case: Anodized aluminum alloy Button: Thermoplastic Terminals: Brass with silver, gold for logic level Terminal Hardware: Screws, lockwasher and terminal lug for screw terminal option
