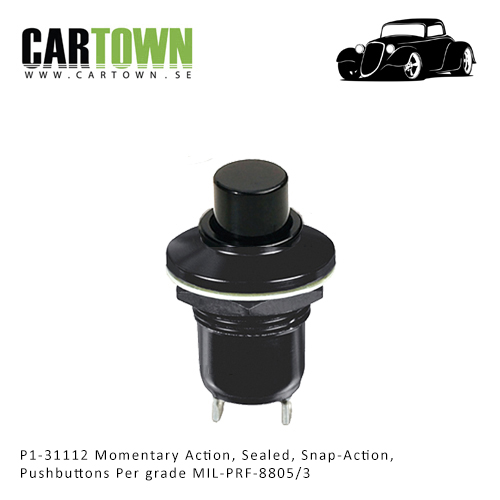

Tryckknapp Alu återfjädrande Svart OFF-(ON) klick 16mm

Återfjädrande tryckknapp Off-(On) med snapp funktion Världens bästa tryckknapp för dig med dom högsta kraven på funktion (Military Grade) Där du också vill känna att den är aktiverad tack vare snap-funktionen Kan även köpas med lödd 2-polig rak 0,75-1,5 kabel, 2-polig 0,75-1,5 spiralkabel. OTTO Momentary Action, Sealed, Snap-Action, Double Break Pushbuttons Per MIL-PRF-8805/3. The P1 offers a mechanical life that is well beyond the 50,000 cycles required by MIL-PRF-8805. The double break switching mechanism has an incredibly fast transfer time, reducing arcing and increasing contact life. The inherent wiping action breaks welds and scrubs the contacts clean on every actuation. The P1 switch offers vastly improved life under extreme conditions found in most military environments. Moistureproofing is accomplished in two ways. The pushbutton is sealed with a silicone boot operating on our patented “rolling sleeve,” providing longer life and smoother operation over a wide temperature range. Epoxy seals protect the contacts and terminals from hostile environments and solder flux. High contact force (120g/4.2 oz), low contact resistance (25mΩ max initial) and short contact bounce result from our snap-action mechanism. These characteristics guarantee exceptional current carrying capabilities over the life of the switch. With the optional low level (gold plate) configuration, the P1 is well suited to interface directly to computers and other solid state devices. The P1 switch is a quality precision snap-action switch designed for use in panel boards, control grips, computers, instruments, pressure switches and other hand or machine operated applications where sealed pushbutton switches are required. Its precision permits the P1 to be used as a limit switch with unique size, high electrical ratings and a wide choice of mounting styles. P1 Key Features: • Button sealed with patented “rolling sleeve” principle • Contact area sealed at button & terminals • Less than 25mΩ initial contact resistance • Ideal for low level switching as well as up to 10 amp duty • Positive tactile feedback • Variety of mounting styles • Engraved buttons & bezels available • UL recognized • Watertight to IP68S available • RoHS compliant Standard Characteristics/Ratings: ELECTRICAL RATINGS: Load Sea Level @ 28VDC 50,000 feet @ 28VDC or 115VAC, 60/400Hz or 115VAC, 60/400Hz Resistive 10A N/A Inductive 5A 5A Lamp 3A N/A Motor 3A N/A Center Contact 3A max N/A DWV 1000Vrms 400Vrms Low Level 10mA @ 30mV max DC or peak AC Electrical Life: 25,000 cycles Mechanical Life: 50,000 cycles, circuit forms 3, 4, & 5 250,000 cycles, circuit forms 1, 2 & 6 Seal: MIL-PRF-8805 Design 2 or Watertight per IP68S or MIL-PRF-8805 Design 3 Operating Temp Range: -55°C to +85°C Operating Force: 2.5 lbs. or 4.0 lbs. Push-Pull: .5 to 2.0 lbs. Reset Force: 0.75 lb. or 1.0 lb. Total Travel: 0.085 +/- 0.015 inches Overtravel: 0.012 inches min Movement Differential: 0.015 inches min MATERIALS: Case: Black anodized aluminum alloy Button: Thermoplastic Terminals: Brass with silver plate, gold plate for low level Terminal Hardware: Screws, lockwasher and solder lugs for screw terminal option Mounting Hardware: Hex nut and lockwasher, panel seal on watertight switches
