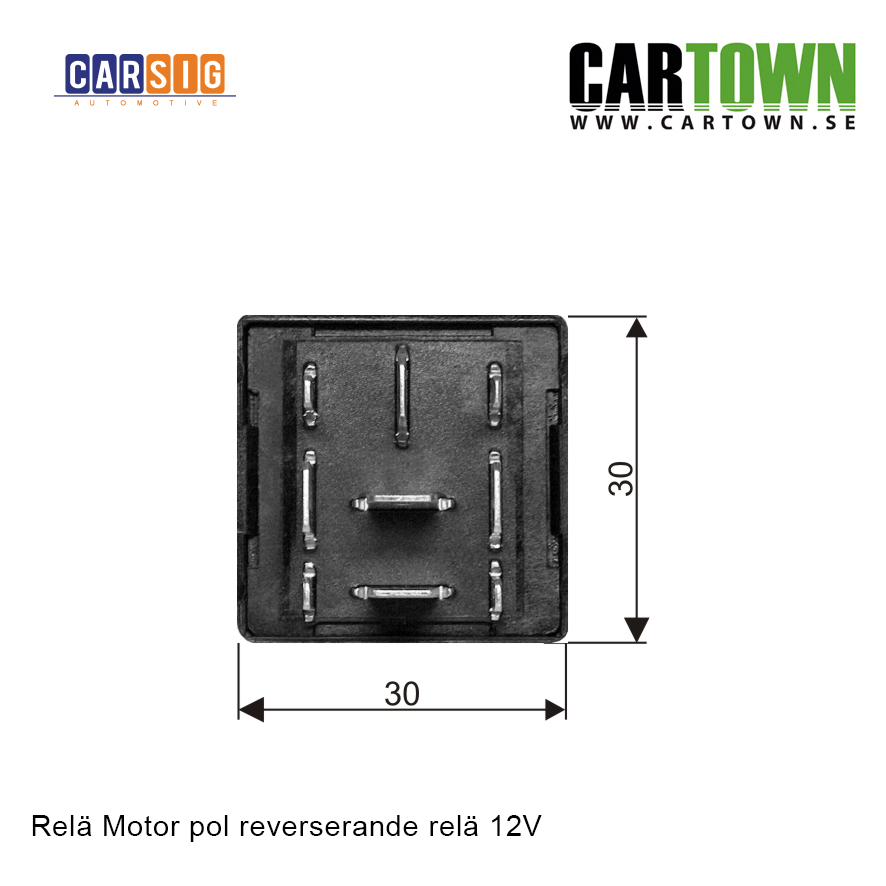

Relay Motor pole reverse relays

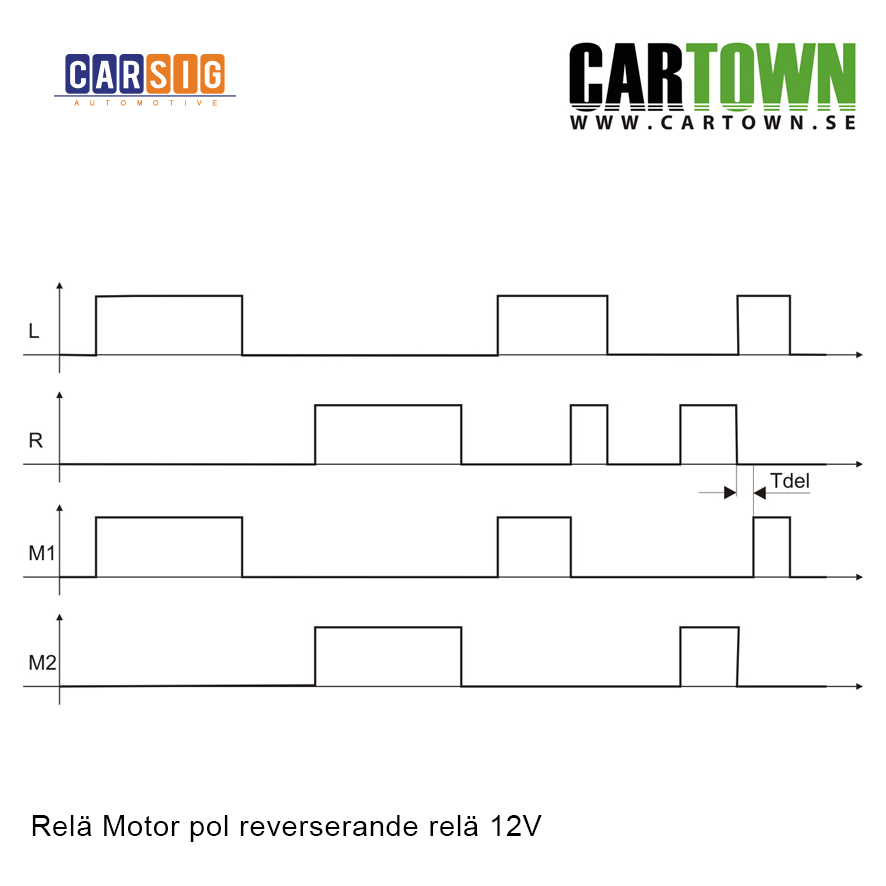

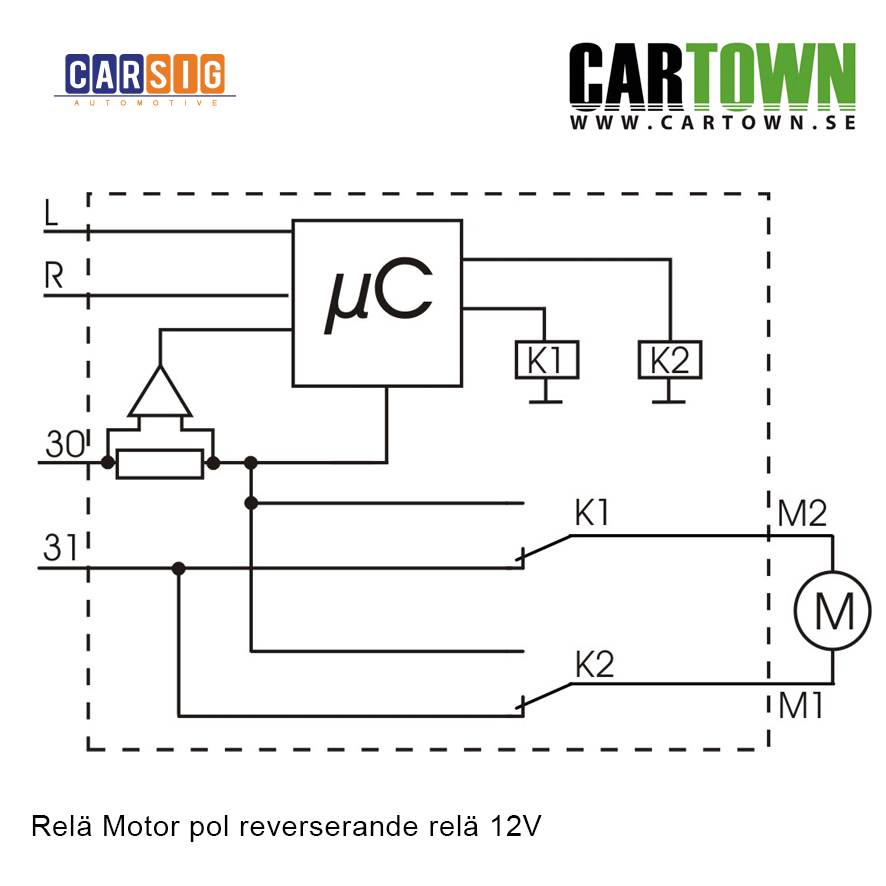

Application: Reversing the polarity of electric motors with shutdown in the event of overload and restart protection. When the L or R input is connected (continuous operation), the corresponding motor output is switched and the motor continues to run in the corresponding direction. The internal overload monitoring switches the motor off immediately when the overload is set. The internal protective circuit monitors the simultaneous connection of inputs L and R. When connected at the same time, the motor output is switched off immediately (lock). The overload threshold can be set from approx. 0.5A to 10A (tolerance +/- 0.5A) using a stepless potentiometer.
