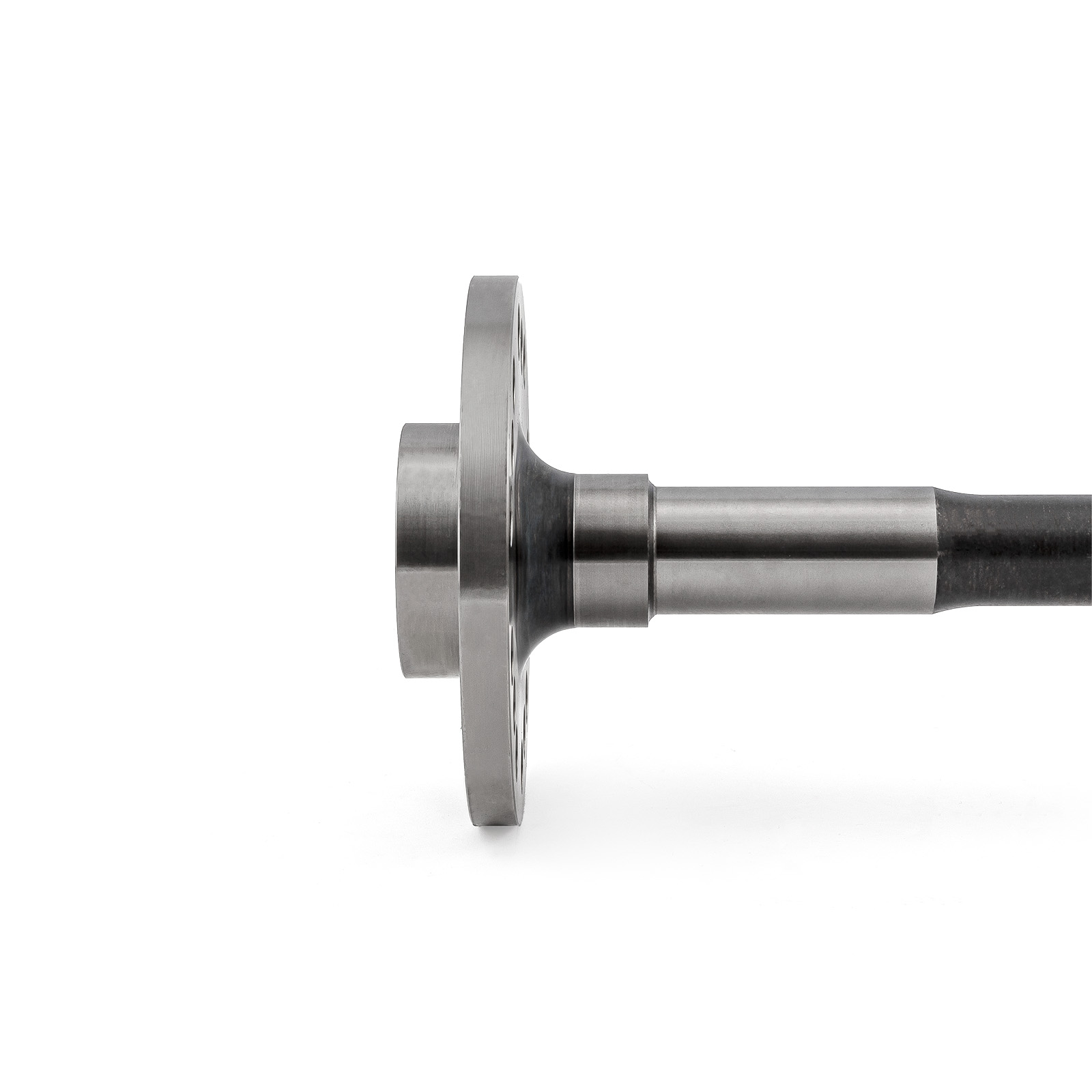

Ford 9" 31 Spline 30.000 in. Cut-to-Fit Axle Shaft - F-100 Large Bearing
€454.60
Ford 9" 31 Spline 30.000 in. Cut-to-Fit Axle Shaft - F-100 Large Bearing
- E-mail us, we reply swiftly!
- Fast shipping with DHL
* welcome to visit our store if you like to checkout our products.
Description
Article no.: 840136514787
Speedmaster axles are manufactured using cutting-edge technology and techniques. These forged steel axles are designed to fit a range of applications and are non-tapered with hardened bearing seats. These axles are available in any length up to 34 inches, and they may be reduced to fit if you decide to narrow your rear-end later on.
Note: When used in Ford 9" Differential our recommendation is to use 1x 34" long axle and 1x 30" long axle.
| Brand: | Speedmaster |
| Part Number: | PCE201.1017 |
| Part Type: | Axle Shaft, Custom Built |
| Inner Axle Splines: | 31 |
| Axle Type: | Flanged |
| Axle Material: | 4140 steel |
| Axle Length (in): | 30.000 in. |
| Wheel Stud Type: | Press-in |
| Wheel Stud Pattern: | Dual 5 x 4.50 in. and 5 x 4.75 in. |
| Spool Included: | No |
| Wheel Studs Included: | No |
| Bearings Included: | No |
| Seals Included: | No |
| Quantity: | Sold individually. |
| Notes: | Cut to length design 10 in. of spline. Axle Sleeve (PCE420.1008) required to set axle back space. |
| Size | Imperial | Metric |
| A: | 2.811 in. | 71.40mm |
| B: | 1.874 in. | 47.6mm |
| C: | 30.000 in. | 762mm |
| D: | 1.562 in. | 39.7mm |
| E: | 5.905 in. | 150mm |
| X: | Axle Sleeve to offset bearing to your specific application. | |
Note: When used in Ford 9" Differential our recommendation is to use 1x 34" long axle and 1x 30" long axle.
